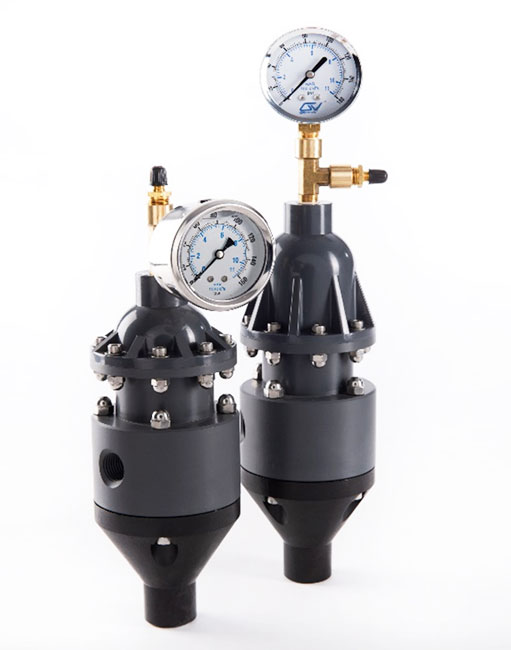

Griffco fusion dampeners are designed to enhance the performance of chemical feed systems by providing a smooth, continuous flow of chemical while providing protection against over-pressurization. Fusion dampeners simplify installation and reduce process connections, saving valuable space in fluid handling systems. Materials of construction are PVC, CPVC, Polypropylene, and PVDF.
Available Sizes
1/4″, 3/8”, and 1/2″ connections (NPT, BSPT Socket, Union)
Volumetric sizes are 6 & 10 in3
Fusion Dampeners
Features
- Combines Back Pressure Function With Pulsation Dampening
- Space Saving Design
- 3 Connection Sizes Available
- 2 Volumetric Sizes Available
- Multiple Diaphragm Materials
- Pressures Up To 150 psi
- Available in PVC, CPVC, and PVDF
Griffco Benefits
- High reliability at an affordable price
- Proven Griffco Reliability
- Wide range of materials
Wetted Materials
Materials of Construction
PVC (Max Temperature: 140°F)
CPVC (Max Temperature: 195°F)
PP (Max Temperature: 195°F)
PVDF (Max Temperature: 300°F)
Diaphragm Material
Std: EPDM
Optional: Viton®, Hypalon®, and PTFE
Gauge & Charging Valves
Std: Brass
Optional: 316 SS
Options
Std: 0–160 psi
Optional: 0–60 psi, 0–100 psi, 0–200 psi
Gauge port sizes of 1/8″
| TITLE | DESCRIPTION | DATE MODIFIED | DOWNLOAD |
Image | Product | Description | Add to Project |
|---|---|---|---|
 FPD050LCPT21 | CPVC – PTFE – Back Mount Premium 160 psi Gauge** | ||
FPD050LCPT24U | CPVC – PTFE – Back Mount Premium 200 psi Gauge** – Union Connection | ||
FPD050LPE01 | PVC – EPDM – Back Mount Economy 160 psi Gauge** | ||
FPD050LPE21 | PVC – EPDM – Back Mount Premium 160 psi Gauge** | ||
FPD050LPT21 | PVC – PTFE – Back Mount Premium 160 psi Gauge** | ||
FPD050LPV22V | PVC – Viton – Back Mount Premium 60 psi Gauge – Viton** | ||
FPD050SPE01 | PVC – EPDM – Back Mount Economy 160 psi Gauge** | ||
FPD050SPE11 | PVC – EPDM – Back Mount Mid-Range 160 psi Gauge** | ||
FPD025SPE01 | PVC – EPDM – Economy 160 psi Gauge** | ||
FPD038SPE01 | PVC – EPDM – Economy 160 psi Gauge** |
