Griffco PVC Calibration Cylinders and Borosilicate Glass Columns are designed to enhance the performance of a chemical feed system by providing a verification of the flow rate of the chemical feed pump. Griffco offers a wide range of calibration column sizes and material options that work in many different applications.

Calibration Columns Connection Options
Connection options for Griffco Calibration Columns

End Cap Materials

  • Polypropylene
  • PVC
  • CPVC
  • PVDF
  • PTFE
  • Halar®
  • 316 SS
  • Alloy 20
  • Hastelloy® C

Configurations

  • Dust cover
  • Sealed
  • EZ-Clean

Connections

  • Threaded - Standard
  • Socket
  • Socket Flanged
  • Flanged (with ball valve)
  • Union

Options

  • Custom labels
  • Material certifications
  • Calibration column stand

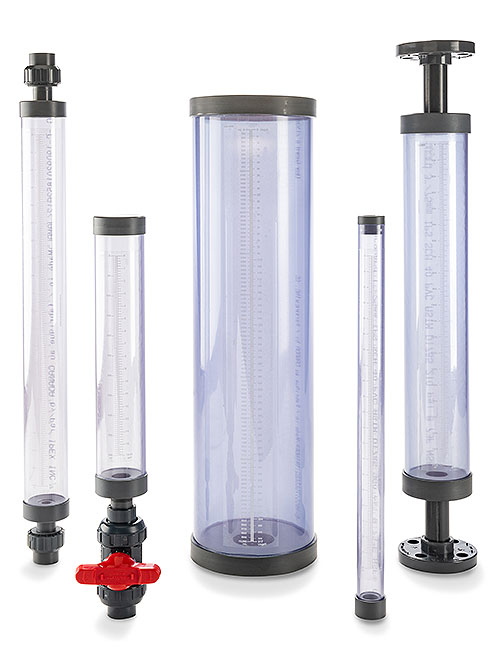

PVC Calibration Cylinders Features

  • Sizes from 100mL to 40,000mL
  • Clear, easy-view tube
  • High-contrast graduation markings
  • Direct GPH and mL readout
  • Sealed top with overflow connection
  • Optional EZ-Clean model
  • Optional open top with dust cap

Griffco Benefits

  • High reliability with numerous options that ensure precise performance
  • Clear, easy-view tube
  • Robust construction

Options for PVC Tops:

Sealed with vent



EZ-Clean



Dust Cap

Griffco Calibration Columns CC PVC - Data Sheets

TitleDescriptionDate modifiedDownload
Data Sheet CC PVC (US) Imperial09-14-2020 Download
Data Sheet CC PVC (Intl) Metric09-14-2020 Download
Data Sheet CC PVC (Spanish) Metric09-14-2020 Download

Griffco Calibration Columns CC PVC - IOM Manuals

TitleDescriptionDate modifiedDownload
IOM Manual CC PVC (US) Imperial09-14-2020 Download
IOM Manual CC PVC (Spanish) Metric09-14-2020 Download

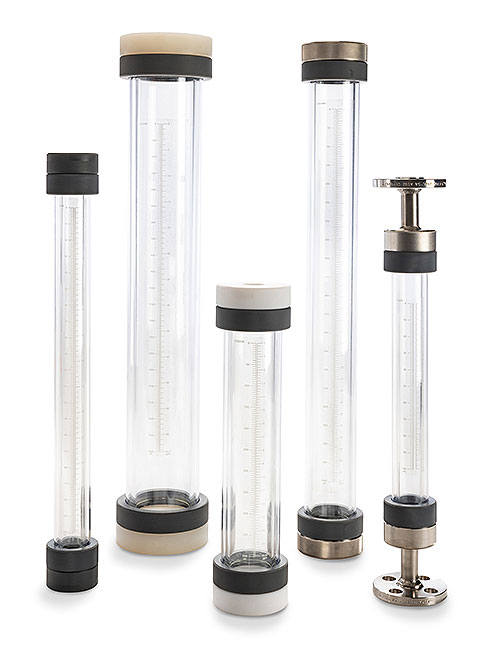

Glass Calibration Cylinders Features

  • Sizes from 30mL to 20,000mL
  • Borosilicate glass tube
  • High-contrast graduation markings
  • US, Metric & GPH Scales
  • Seven (7) end cap materials
  • Easy disassembly for cleaning
  • Protective outer shield (except 10K and 20K models)
  • Sealed top with overflow connection

Griffco Benefits

  • High reliability with numerous options that ensure precise performance
  • Clear, easy-view tube
  • Robust construction

Griffco Calibration Columns CCG Glass - Data Sheets

TitleDescriptionDate modifiedDownload
Data Sheet CCG Glass (US) Imperial09-14-2020 Download
Data Sheet CCG Glass (Intl) Metric09-14-2020 Download
Data Sheet CCG Glass (Spanish) Metric09-14-2020 Download

Griffco Calibration Columns CCG Glass - IOM Manuals

TitleDescriptionDate modifiedDownload
IOM Manual CCG Glass (US) Imperial09-14-2020 Download
IOM Manual CCG Glass (Spanish) Metric09-14-2020 Download

Griffco Calibration Columns - Dimensional Drawings

PVC Calibration Cylinders

Glass Calibration Cylinders

TitleDescriptionDate modifiedDownload
Dim CCG Threaded US Dimensional09-14-2020 Download
Dim CCG Threaded Metric Dimensional09-14-2020 Download
Dim CCGF Flanged US Dimensional09-14-2020 Download
Dim CCGF Flanged Metric Dimensional09-14-2020 Download
Dim CCGU Union US Dimensional09-14-2020 Download
Dim CCGU Union Metric Dimensional09-14-2020 Download

3D CAD Drawings Now Available

Three-dimensional CAD drawings are now available for you to download and use in your pumping system designs.
